> ZSX PRIMUS IV

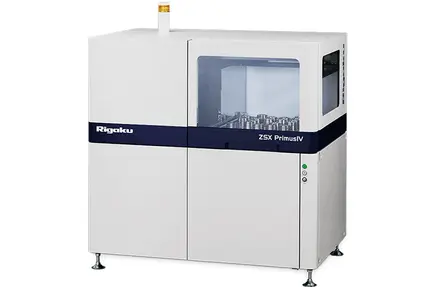

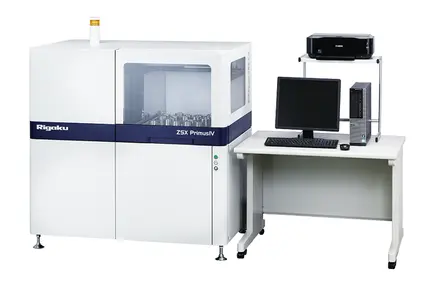

ZSX PRIMUS IV

Tube-Above Sequential Wavelength Dispersive X-ray Fluorescence Spectrometer

ZSX Primus IV features an innovative optics-above configuration. Providing superior performance with the flexibility for analyzing the most complex samples, the ZSX Primus IV spectrometer features a 30-micron tube, the thinnest end-window tube available in the industry, for exceptional light element (low-Z) detection limits.  EZ-scan allows users to perform XRF elemental analysis of unknown samples without any prior setup.  Combined with SQX fundamental parameters software, it provides the most accurate and rapid XRF results possible. SQX is capable of automatically correcting for all matrix effects, including line overlaps.  ​Nitrogen gas can now be used as the atmospheric gas in place of helium.

Technique

Elemental Range

X-Ray Tube

Primary Beam Filter

Crystals

Detectors


Atmosphere

Autosampler


Sequential wavelength dispersive X-ray fluorescence

₈O - ₉₆Cm standard (₄Be - ₉₆Cm Optional - depending on crystal configurations)

End window type Rh target 4 kW

Ni400, Ni40, Al125, Al25

Standard: LiF200, PET, RX26, optional analyzing crystals, r-θ stage/mapping

SC (Scintillation counter), F-PC (Gas flow proportional counter)
Optional: S-PC LE (Gas sealed proportional counter:does not require P-10 gas)

Vacuum (He-flush optional)

Expandable sample changer with 48 positions
